AI IoT Solar Flood Lighting Project in Malaysia Industrial Zone
200W AI IoT Solar Floodlight Project in Malaysia Industrial Zone
| LOCATION | APPLICATION | LIGHTING SYSTEM | POLE HEIGHT |
|---|---|---|---|
| Malaysia | Industrial Zone | AI IoT Solar Floodlight | 4M |
Project Overview
The Challenge
This industrial zone in Malaysia required reliable outdoor lighting for surrounding roads, working areas and open spaces. With multiple outdoor lighting points, the project also needed a more convenient way to manage lighting operation and monitor system conditions without relying on frequent on-site inspections.
Our Approach
We provided an AI IoT solar floodlighting solution using HC-WT3-A200W fixtures mounted on 4-meter poles. The system combines high-output LED lighting with intelligent remote management, allowing operators to control the lights and monitor key operating conditions through an online platform.
Project Requirements
| High-Output Lighting | Remote Lighting Control | System Monitoring | Flexible Light Adjustment |
|---|---|---|---|
| Provide strong illumination for outdoor working areas and surrounding spaces. | Allow multiple lights to be switched and adjusted remotely. | Monitor battery, voltage and current conditions through the smart management system. | Adjust brightness and color temperature according to different operating requirements. |
Our Lighting Solution
The project uses HC-WT3-A200W AI IoT solar floodlights mounted on 4-meter poles to illuminate the outdoor areas surrounding the industrial zone.
The fixtures use CREE 3030 LED chips with a luminous efficacy of up to 210 lm/W. Through the AI IoT control system, operators can remotely manage lighting, adjust brightness and color temperature, locate connected lighting points through GPS, and monitor battery, voltage and current conditions.
Remote system upgrades also make it easier to maintain and update connected lighting equipment without visiting every lighting point individually.
AI IoT Solar Flood Lighting Project in Malaysia
Project Configuration
| Item | Project Specification |
|---|---|
| Application | Industrial Zone Outdoor Lighting |
| Lighting Type | AI IoT Solar Floodlight |
| Model | HC-WT3-A200W |
| Fixture Power | 200W |
| Pole Height | 4M |
| LED Chip | CREE 3030 |
| Luminous Efficacy | Up to 210 lm/W |
| Housing | Die-Cast Aluminum |
| Lens | PC Lens |
| Color Temperature | 3000K–6000K AI Adjustable |
| CRI | >80 |
| Brightness | Adjustable |
| Controller | AI IoT Control |
Why This Configuration?
High-Efficiency Solar Floodlighting
With a luminous efficacy of up to 210 lm/W, the CREE 3030 LED system provides high-output illumination for industrial outdoor areas while making efficient use of available energy.
4M Pole Installation
The 4-meter mounting height helps distribute light across surrounding roads, working areas and open spaces while keeping the fixtures at a practical height for industrial outdoor applications.
AI IoT Remote Management
Connected floodlights can be managed through the online platform, allowing operators to control multiple lighting points without relying on routine manual operation at each location.
Real-Time System Monitoring
Battery, voltage and current monitoring gives operators better visibility into the operating condition of the solar lighting system and helps identify abnormal conditions more efficiently.
Smart Functions
AI IoT Smart Lighting Management
▶ Remote Batch On/Off Control
▶ Remote Brightness Adjustment
▶ Adjustable Color Temperature
▶ GPS Positioning & Anti-Theft Monitoring
▶ Online Cloud Platform Control
▶ Battery Monitoring
▶ Voltage Monitoring
▶ Current Monitoring
▶ Remote System Upgrade

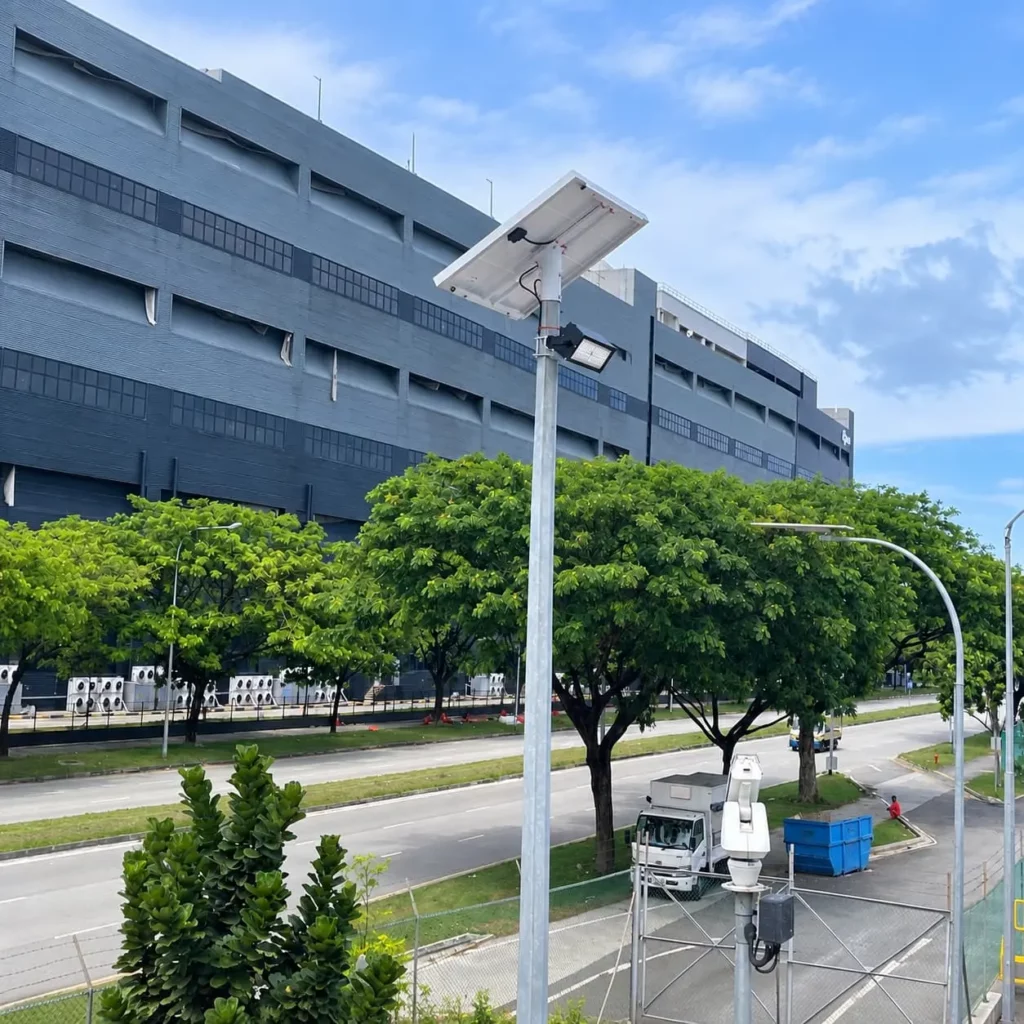

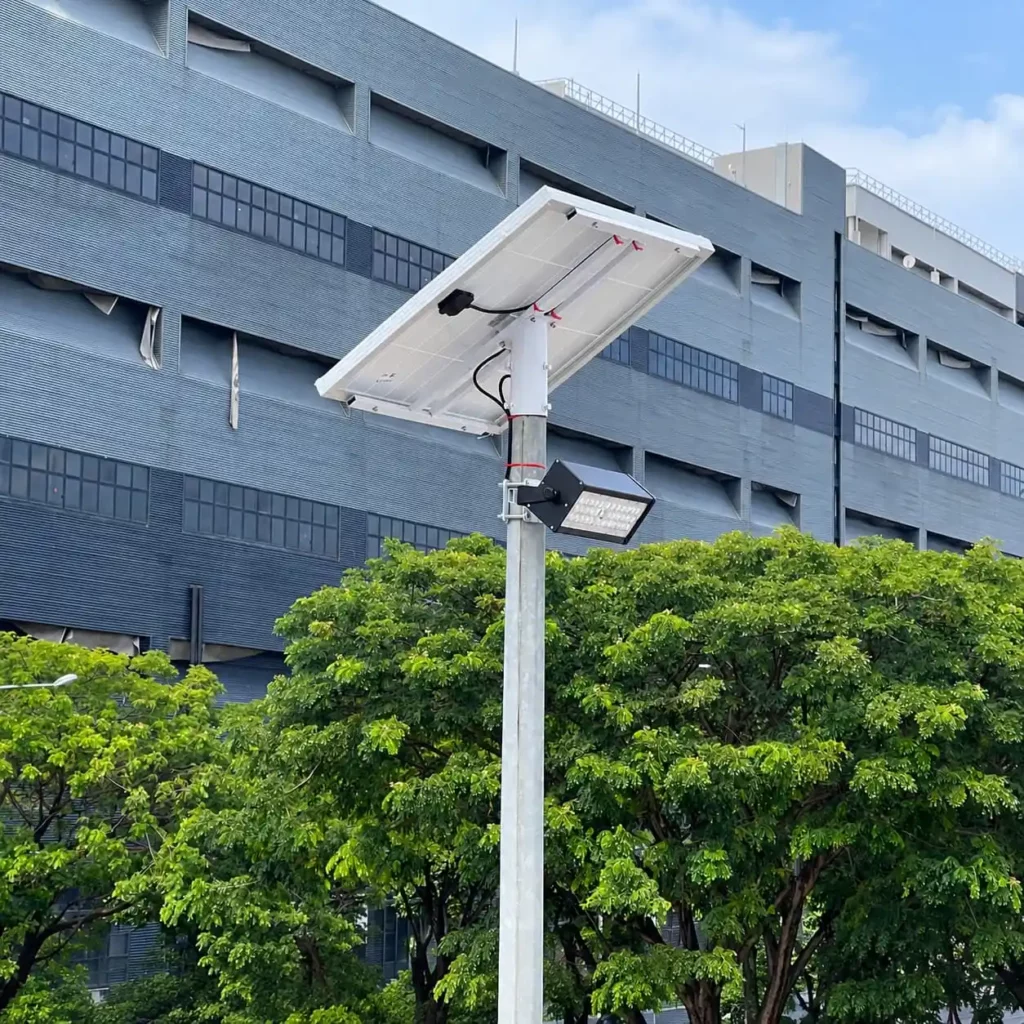

Installation & On-Site Performance
| Installation Site | Fixture Installation | Daytime Effect | Lighting Effect |
|---|---|---|---|
| Industrial zone site | AI IoT solar floodlight mounted on 6M pole | Installed system during daytime | Actual project lighting effect |
The AI IoT solar floodlights were installed on 6-meter poles to provide high-intensity illumination around the industrial zone. The installation combines outdoor solar lighting with remote smart management, giving operators greater control over both lighting operation and system monitoring.
Project Results
Application: Industrial Zone Outdoor Lighting
Pole Height: 4M
Lighting System: AI IoT Solar Floodlight
Model: HC-WT3-A200W
Power Range: 200W
Luminous Efficacy: Up to 210 lm/W
Color Temperature: 3000K–6000K AI Adjustable
Products Used

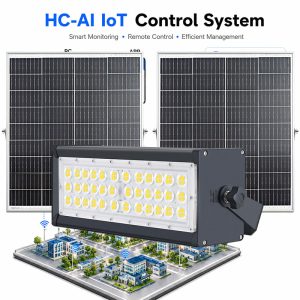

HC-WT3-A200W AI IoT Solar Floodlight
200W | Up to 210 lm/W | CREE 3030 | AI IoT Control
Planning an Industrial Solar Lighting Project?
Share your site dimensions, installation height, required lighting area, operating hours and project requirements. Our engineering team can recommend the appropriate fixture power, solar system configuration, installation layout and AI IoT control solution for your project.
