School Sports Field LED Lighting Project in Zhongshan, China
1500W AI IoT LED sports lighting with 15m poles and optimized 30°/60° beam angles for uniform field illumination.
| LOCATION | APPLICATION | POLE HEIGHT | LIGHTING SYSTEM |
| Zhongshan, China | School Sports Field | 15 m | 1500W AI IoT LED Stadium Light |
Project Overview
The Challenge
This school sports field lighting project in Zhongshan, China, required powerful and reliable illumination for nighttime sports and daily campus activities. The lighting system needed to provide good visibility across the field while reducing dark areas and unnecessary light loss.
Our Approach
Our team developed a 1500W LED sports lighting solution using 15-meter poles positioned around the field, with different beam angles selected to distribute light more effectively across both central and outer areas.
Project Requirements
| High-Output Lighting | Uniform Light Distribution | Precise Beam Control | Smart Management |
| Provide sufficient illumination from 15m mounting heights. | Reduce dark areas across the playing field. | Direct light where it is needed instead of wasting output outside the field. | Allow easier adjustment and management of the lighting system. |
Our Lighting Solution

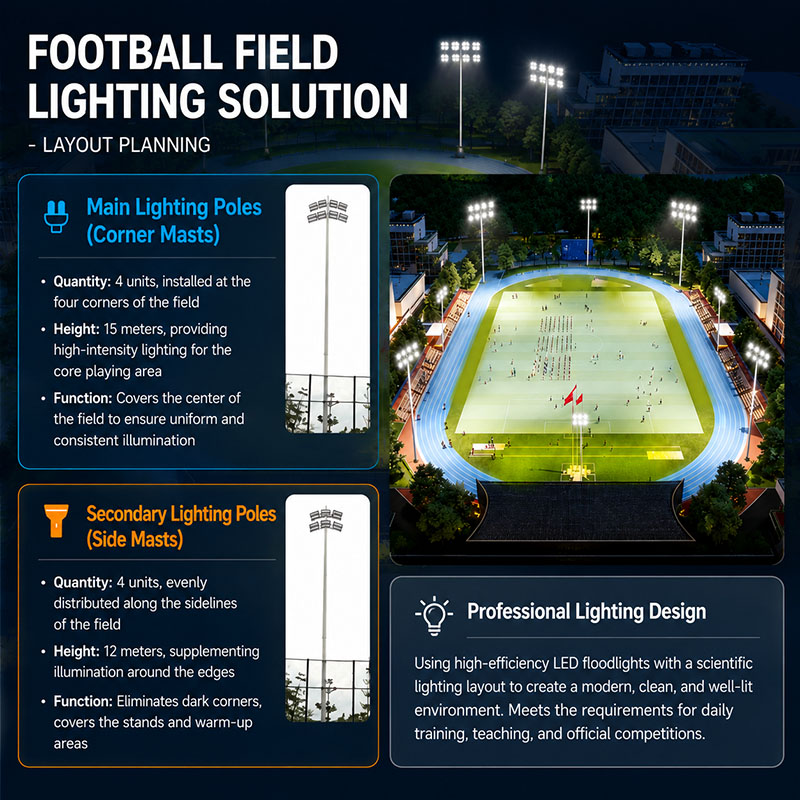

Four primary lighting poles were installed around the sports field at a mounting height of 15 meters.

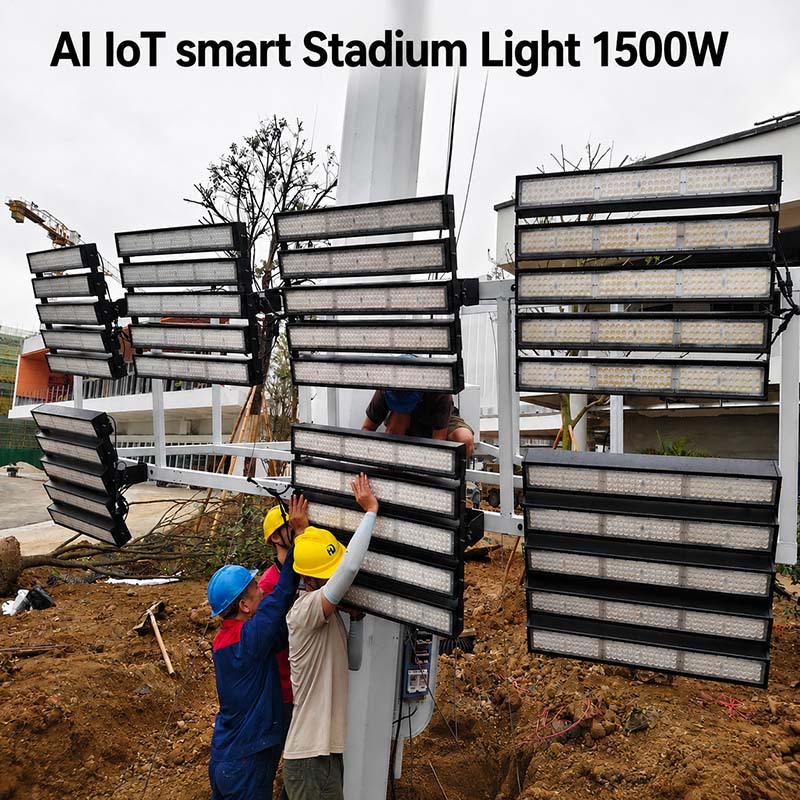

Each pole uses HC-WT3-C1500W AI IoT LED floodlights. Each 1500W fixture consists of 5 x 300W LED modules, allowing the optical distribution to be configured according to different areas of the field.
The center modules use 30° lenses for longer and more concentrated light projection, while the outer modules use 60° lenses to provide wider coverage. This combination helps distribute light more effectively across the playing area.
Project Configuration
| Item | Project Specification |
|---|---|
| Application | School Sports Field |
| Lighting Model | HC-WT3-C1500W |
| Fixture Power | 1500W |
| LED Modules | 5 × 300W |
| Mounting Height | 15 m |
| LED Chips | CREE 3030 |
| Luminous Efficacy | Up to 210 lm/W |
| Driver | Mean Well |
| Beam Angles | 30° + 60° |
| Color Temperature | 3000K–6000K Adjustable |
| Control | AI IoT Control |
| Brightness | Adjustable |
| CRI | >80 |
Why This Configuration?
30° Beam for Long-Distance Projection
The narrower 30° beam helps direct concentrated light from the 15m mounting height toward the central playing area.
60° Beam for Wider Coverage
The wider 60° beam is used on the outer modules to expand coverage toward surrounding areas of the field.
Modular 1500W Design
5 x 300W modules provide high-output illumination while allowing the optical distribution to be configured for different field areas.
AI IoT Lighting Control
Smart control allows operators to manage brightness and color temperature according to different operating requirements.

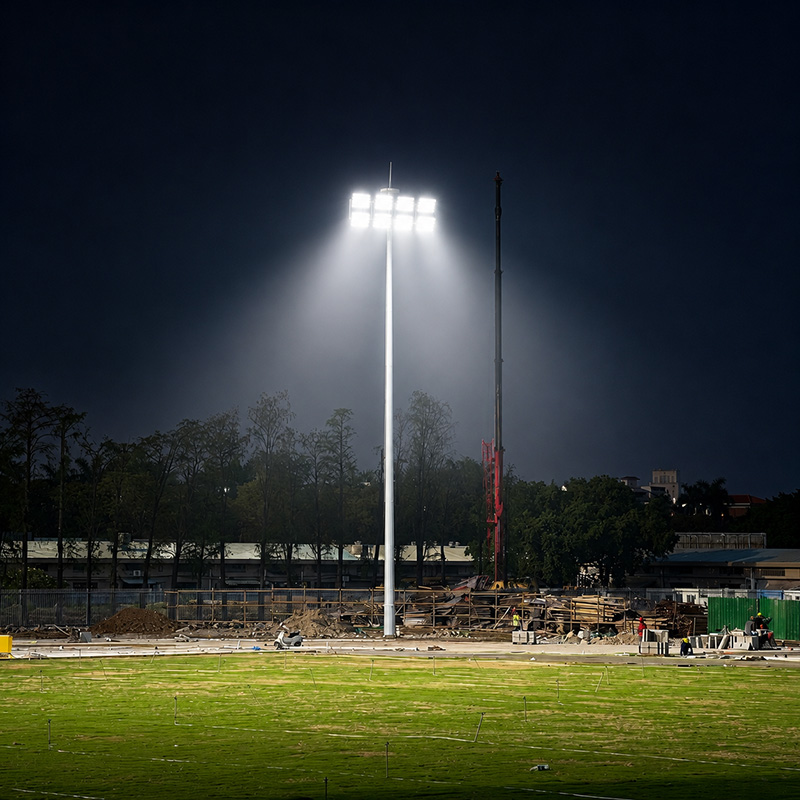

Installation & On-Site Performance
| Installation site | Installation angle | Light-up effect | Finished result |
 |
 |
 |
 |
FIFA Quality Pro Certified Football Field
 |
The football field at Zhongshan Ninghui School has been tested and certified under the FIFA Quality Programme for Football Turf – FIFA Quality Pro standard.
Our LED sports lighting system was installed at this school football field, using 15-meter poles and 1500W fixtures with optimized 30° and 60° beam distributions to support nighttime training and sports activities.
|
| FIFA Quality Pro | Zhongshan Ninghui School | Certified Field |
| Football Turf Standard | Zhongshan, China | No. 1024720 |
Project Results
The completed lighting system provides broad illumination across the school sports field, with different beam angles helping direct light toward both the central playing area and surrounding zones.
The modular lighting configuration also gives the project greater flexibility for light distribution and smart operation, providing the school with a practical solution for nighttime sports and campus activities.
Products Used
HC-WT3-C1500W AI IoT LED Stadium Light
1500W | Up to 210 lm/W | AI IoT Control | 30° + 60°
